CCNA 1 v7.0 Curriculum: Module 9 – Address Resolution

9.0. Introduction

9.0.1. Why should I take this module?

Welcome to Address Resolution!

Hosts and routers both create routing tables to ensure that they can send and receive data across networks. So how does this information get created in a routing table? As a network administrator, you could enter these MAC and IP addresses manually. But that would take a lot of time and the likelihood of making a few mistakes is great. Are you thinking that there must be some way that this could be done automatically, by the hosts and routers themselves? Of course, you are correct! And even though it is automatic, you must still understand how this works, because you may have to troubleshoot a problem, or worse, your network could be attacked by a threat actor. Are you ready to learn about address resolution? This module has several very good videos to help explain the concepts, as well as three Packet Tracer activities to cement your understanding. Why wait?

9.0.2. What will I learn to do in this module?

Module Title: Address Resolution

Module Objective: Explain how ARP and ND enable communication on a network.

Topic TitleTopic Objective
MAC and IPCompare the roles of the MAC address and the IP address.
ARPDescribe the purpose of ARP.
Neighbor DiscoveryDescribe the operation of IPv6 neighbor discovery.

9.1. MAC and IP

9.1.1. Destination on Same Network

Sometimes a host must send a message, but it only knows the IP address of the destination device. The host needs to know the MAC address of that device, but how can it be discovered? That is where address resolution becomes critical.

There are two primary addresses assigned to a device on an Ethernet LAN:

  • Physical address (the MAC address) – Used for NIC to NIC communications on the same Ethernet network.
  • Logical address (the IP address) – Used to send the packet from the source device to the destination device. The destination IP address may be on the same IP network as the source or it may be on a remote network.

Layer 2 physical addresses (i.e., Ethernet MAC addresses) are used to deliver the data link frame with the encapsulated IP packet from one NIC to another NIC that is on the same network. If the destination IP address is on the same network, the destination MAC address will be that of the destination device.

Consider the following example using simplified MAC address representations.

In this example, PC1 wants to send a packet to PC2. The figure displays the Layer 2 destination and source MAC addresses and the Layer 3 IPv4 addressing that would be included in the packet sent from PC1.

The Layer 2 Ethernet frame contains the following:

  • Destination MAC address – This is the simplified MAC address of PC2, 55-55-55.
  • Source MAC address – This is the simplified MAC address of the Ethernet NIC on PC1, aa-aa-aa.

The Layer 3 IP packet contains the following:

  • Source IPv4 address – This is the IPv4 address of PC1, 192.168.10.10.
  • Destination IPv4 address – This is the IPv4 address of PC2, 192.168.10.11.

9.1.2. Destination on Remote Network

When the destination IP address (IPv4 or IPv6) is on a remote network, the destination MAC address will be the address of the host default gateway (i.e., the router interface).

Consider the following example using a simplified MAC address representation.

In this example, PC1 wants to send a packet to PC2. PC2 is located on remote network. Because the destination IPv4 address is not on the same local network as PC1, the destination MAC address is that of the local default gateway on the router.

Routers examine the destination IPv4 address to determine the best path to forward the IPv4 packet. When the router receives the Ethernet frame, it de-encapsulates the Layer 2 information. Using the destination IPv4 address, it determines the next-hop device, and then encapsulates the IPv4 packet in a new data link frame for the outgoing interface.

In our example, R1 would now encapsulate the packet with new Layer 2 address information as shown in the figure.

The new destination MAC address would be that of the R2 G0/0/1 interface and the new source MAC address would be that of the R1 G0/0/1 interface.

Along each link in a path, an IP packet is encapsulated in a frame. The frame is specific to the data link technology that is associated with that link, such as Ethernet. If the next-hop device is the final destination, the destination MAC address will be that of the device Ethernet NIC, as shown in the figure.

How are the IP addresses of the IP packets in a data flow associated with the MAC addresses on each link along the path to the destination? For IPv4 packets, this is done through a process called Address Resolution Protocol (ARP). For IPv6 packets, the process is ICMPv6 Neighbor Discovery (ND).

9.1.3. Packet Tracer – Identify MAC and IP Addresses

9.1.3. Packet Tracer – Identify MAC and IP Addresses

In this Packet Tracer, activity you will complete the following objectives:

  • Gather PDU Information for Local Network Communication
  • Gather PDU Information for Remote Network Communication

This activity is optimized for viewing PDUs. The devices are already configured. You will gather PDU information in simulation mode and answer a series of questions about the data you collect.

9.2. ARP

9.2.1. ARP Overview

If your network is using the IPv4 communications protocol, the Address Resolution Protocol, or ARP, is what you need to map IPv4 addresses to MAC addresses. This topic explains how ARP works.

Every IP device on an Ethernet network has a unique Ethernet MAC address. When a device sends an Ethernet Layer 2 frame, it contains these two addresses:

  • Destination MAC address – The Ethernet MAC address of the destination device on the same local network segment. If the destination host is on another network, then the destination address in the frame would be that of the default gateway (i.e., router).
  • Source MAC address – The MAC address of the Ethernet NIC on the source host.

The figure illustrates the problem when sending a frame to another host on the same segment on an IPv4 network.

I need to send information to 192.168.1.7, but I only have the IP address. I don’t know the MAC address of the device that has that IP.

To send a packet to another host on the same local IPv4 network, a host must know the IPv4 address and the MAC address of the destination device. Device destination IPv4 addresses are either known or resolved by device name. However, MAC addresses must be discovered.

A device uses Address Resolution Protocol (ARP) to determine the destination MAC address of a local device when it knows its IPv4 address.

ARP provides two basic functions:

  • Resolving IPv4 addresses to MAC addresses
  • Maintaining a table of IPv4 to MAC address mappings

9.2.2. ARP Functions

When a packet is sent to the data link layer to be encapsulated into an Ethernet frame, the device refers to a table in its memory to find the MAC address that is mapped to the IPv4 address. This table is stored temporarily in RAM memory and called the ARP table or the ARP cache.

The sending device will search its ARP table for a destination IPv4 address and a corresponding MAC address.

  • If the packet’s destination IPv4 address is on the same network as the source IPv4 address, the device will search the ARP table for the destination IPv4 address.
  • If the destination IPv4 address is on a different network than the source IPv4 address, the device will search the ARP table for the IPv4 address of the default gateway.

In both cases, the search is for an IPv4 address and a corresponding MAC address for the device.

Each entry, or row, of the ARP table binds an IPv4 address with a MAC address. We call the relationship between the two values a map. This simply means that you can locate an IPv4 address in the table and discover the corresponding MAC address. The ARP table temporarily saves (caches) the mapping for the devices on the LAN.

If the device locates the IPv4 address, its corresponding MAC address is used as the destination MAC address in the frame. If there is no entry is found, then the device sends an ARP request.

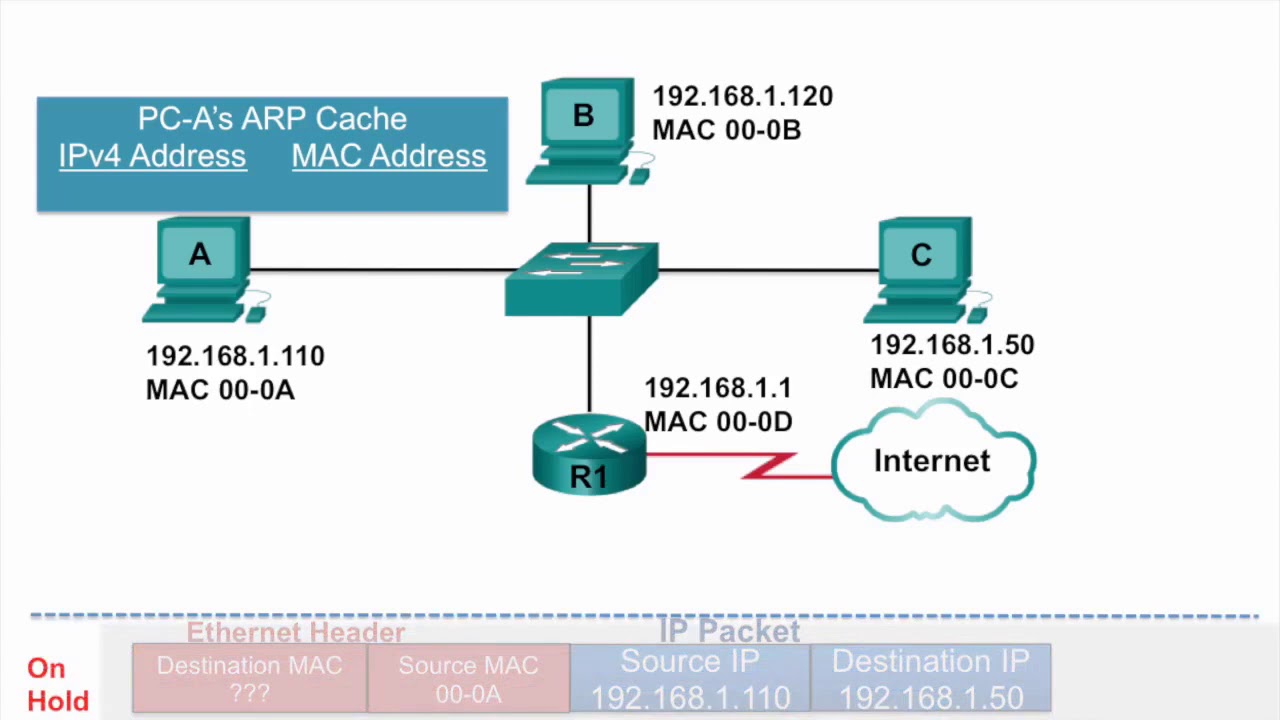

9.2.3. Video – ARP Request

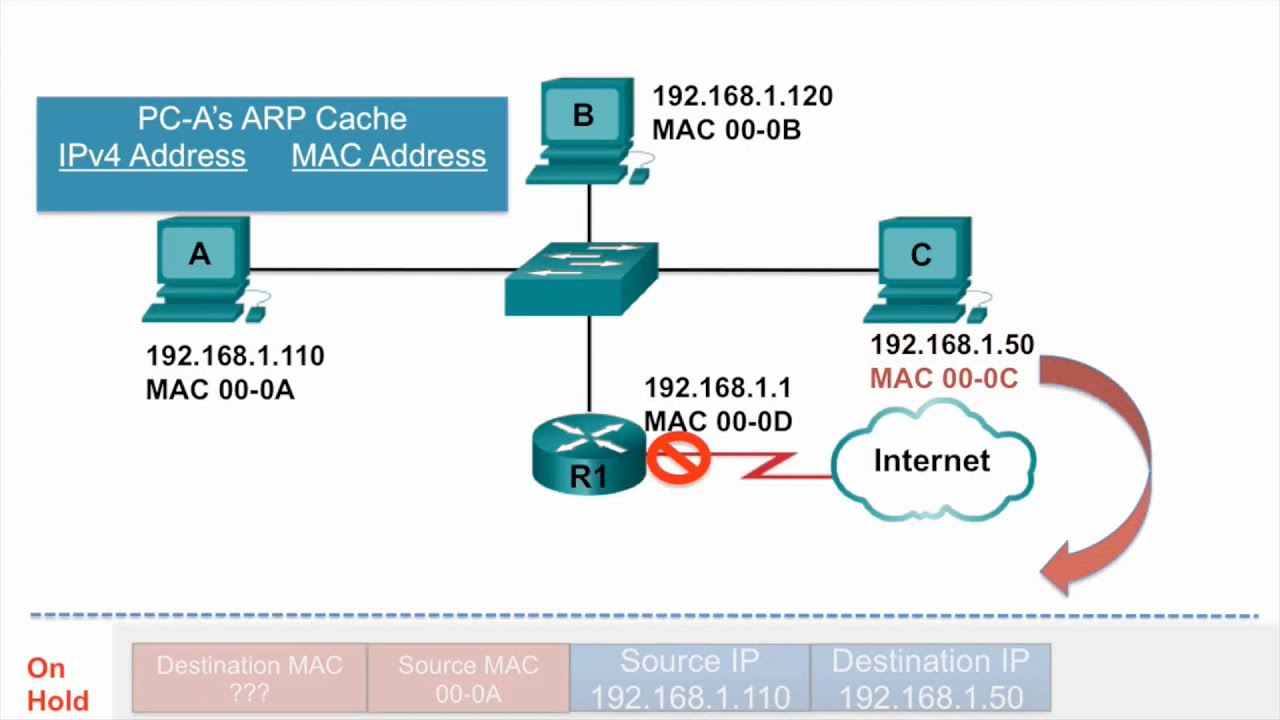

9.2.4. Video – ARP Operation – ARP Reply

9.2.5. Video – ARP Role in Remote Communications

9.2.6. Removing Entries from an ARP Table

For each device, an ARP cache timer removes ARP entries that have not been used for a specified period of time. The times differ depending on the operating system of the device. For example, newer Windows operating systems store ARP table entries between 15 and 45 seconds, as illustrated in the figure.

Note: MAC addresses are shortened for demonstration purposes.

Commands may also be used to manually remove some or all of the entries in the ARP table. After an entry has been removed, the process for sending an ARP request and receiving an ARP reply must occur again to enter the map in the ARP table.

9.2.7. ARP Tables on Networking Devices

On a Cisco router, the show ip arp command is used to display the ARP table, as shown in the figure.

R1# show ip arp
Protocol  Address          Age (min)  Hardware Addr   Type   Interface
Internet  192.168.10.1            -   a0e0.af0d.e140  ARPA   GigabitEthernet0/0/0
Internet  209.165.200.225         -   a0e0.af0d.e141  ARPA   GigabitEthernet0/0/1
Internet  209.165.200.226         1   a03d.6fe1.9d91  ARPA   GigabitEthernet0/0/1
R1#

On a Windows 10 PC, the arp –a command is used to display the ARP table, as shown in the figure.

C:\Users\PC> arp -a
Interface: 192.168.1.124 --- 0x10
  Internet Address      Physical Address      Type
  192.168.1.1           c8-d7-19-cc-a0-86     dynamic
  192.168.1.101         08-3e-0c-f5-f7-77     dynamic
  192.168.1.110         08-3e-0c-f5-f7-56     dynamic
  192.168.1.112         ac-b3-13-4a-bd-d0     dynamic
  192.168.1.117         08-3e-0c-f5-f7-5c     dynamic
  192.168.1.126         24-77-03-45-5d-c4     dynamic
  192.168.1.146         94-57-a5-0c-5b-02     dynamic
  192.168.1.255         ff-ff-ff-ff-ff-ff     static
  224.0.0.22            01-00-5e-00-00-16     static
  224.0.0.251           01-00-5e-00-00-fb     static
  239.255.255.250       01-00-5e-7f-ff-fa     static
  255.255.255.255       ff-ff-ff-ff-ff-ff     static
C:\Users\PC>

9.2.8. ARP Issues – ARP Broadcasts and ARP Spoofing

As a broadcast frame, an ARP request is received and processed by every device on the local network. On a typical business network, these broadcasts would probably have minimal impact on network performance. However, if a large number of devices were to be powered up and all start accessing network services at the same time, there could be some reduction in performance for a short period of time, as shown in the figure. After the devices send out the initial ARP broadcasts and have learned the necessary MAC addresses, any impact on the network will be minimized.

In some cases, the use of ARP can lead to a potential security risk. A threat actor can use ARP spoofing to perform an ARP poisoning attack. This is a technique used by a threat actor to reply to an ARP request for an IPv4 address belonging to another device, such as the default gateway, as shown in the figure. The threat actor sends an ARP reply with its own MAC address. The receiver of the ARP reply will add the wrong MAC address to its ARP table and send these packets to the threat actor.

Enterprise level switches include mitigation techniques known as dynamic ARP inspection (DAI). DAI is beyond the scope of this course.

Note: MAC addresses are shortened for demonstration purposes.

9.2.9. Packet Tracer – Examine the ARP Table

9.2.9. Packet Tracer – Examine the ARP Table

In this Packet Tracer, activity you will complete the following objectives:

  • Examine an ARP Request
  • Examine a Switch MAC Address Table
  • Examine the ARP Process in Remote Communications

This activity is optimized for viewing PDUs. The devices are already configured. You will gather PDU information in simulation mode and answer a series of questions about the data you collect.

9.3. IPv6 Neighbor Discovery

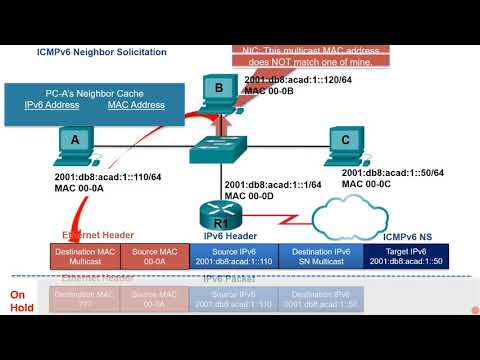

9.3.1. Video – IPv6 Neighbor Discovery

9.3.2. IPv6 Neighbor Discovery Messages

IPv6 Neighbor Discovery protocol is sometimes referred to as ND or NDP. In this course, we will refer to it as ND. ND provides address resolution, router discovery, and redirection services for IPv6 using ICMPv6. ICMPv6 ND uses five ICMPv6 messages to perform these services:

  • Neighbor Solicitation messages
  • Neighbor Advertisement messages
  • Router Solicitation messages
  • Router Advertisement messages
  • Redirect Message

Neighbor Solicitation and Neighbor Advertisement messages are used for device-to-device messaging such as address resolution (similar to ARP for IPv4). Devices include both host computers and routers.

Router Solicitation and Router Advertisement messages are for messaging between devices and routers. Typically router discovery is used for dynamic address allocation and stateless address autoconfiguration (SLAAC).

Note: The fifth ICMPv6 ND message is a redirect message which is used for better next-hop selection. This is beyond the scope of this course.

IPv6 ND is defined in the IETF RFC 4861.

9.3.3. IPv6 Neighbor Discovery – Address Resolution

Much like ARP for IPv4, IPv6 devices use IPv6 ND to determine the MAC address of a device that has a a known IPv6 address.

ICMPv6 Neighbor Solicitation and Neighbor Advertisement messages are used for MAC address resolution. This is similar to ARP Requests and ARP Replies used by ARP for IPv4. For example, assume PC1 wants to ping PC2 at IPv6 address 2001:db8:acad::11. To determine the MAC address for the known IPv6 address, PC1 sends an ICMPv6 Neighbor Solicitation message as illustrated in the figure.

ICMPv6 Neighbor Solicitation messages are sent using special Ethernet and IPv6 multicast addresses. This allows the Ethernet NIC of the receiving device to determine whether the Neighbor Solicitation message is for itself without having to send it to the operating system for processing.

PC2 replies to the request with an ICMPv6 Neighbor Advertisement message which includes its MAC address.

9.3.4. Packet Tracer – IPv6 Neighbor Discovery

9.3.4. Packet Tracer – IPv6 Neighbor Discovery

In order for a device to communicate with another device, the MAC address of the destination device must be known. With IPv6, a process called Neighbor Discovery is responsible for determining the destination MAC address. You will gather PDU information in simulation mode to better understand the process. There is no Packet Tracer scoring for this activity.

9.4. Module Practice and Quiz

9.4.1. What did I learn in this module?

MAC and IP

Layer 2 physical addresses (i.e., Ethernet MAC addresses) are used to deliver the data link frame with the encapsulated IP packet from one NIC to another NIC on the same network. If the destination IP address is on the same network, the destination MAC address will be that of the destination device. When the destination IP address (IPv4 or IPv6) is on a remote network, the destination MAC address will be the address of the host default gateway (i.e., the router interface). Along each link in a path, an IP packet is encapsulated in a frame. The frame is specific to the data link technology associated that is associated with that link, such as Ethernet. If the next-hop device is the final destination, the destination MAC address will be that of the device Ethernet NIC. How are the IP addresses of the IP packets in a data flow associated with the MAC addresses on each link along the path to the destination? For IPv4 packets, this is done through a process called ARP. For IPv6 packets, the process is ICMPv6 ND.

ARP

Every IP device on an Ethernet network has a unique Ethernet MAC address. When a device sends an Ethernet Layer 2 frame, it contains these two addresses: destination MAC address and source MAC address. A device uses ARP to determine the destination MAC address of a local device when it knows its IPv4 address. ARP provides two basic functions: resolving IPv4 addresses to MAC addresses and maintaining a table of IPv4 to MAC address mappings. The ARP request is encapsulated in an Ethernet frame using this header information: source and destination MAC addresses and type. Only one device on the LAN will have an IPv4 address that matches the target IPv4 address in the ARP request. All other devices will not reply. The ARP reply contains the same header fields as the request. Only the device that originally sent the ARP request will receive the unicast ARP reply. After the ARP reply is received, the device will add the IPv4 address and the corresponding MAC address to its ARP table. When the destination IPv4 address is not on the same network as the source IPv4 address, the source device needs to send the frame to its default gateway. This is the interface of the local router. For each device, an ARP cache timer removes ARP entries that have not been used for a specified period of time. Commands may also be used to manually remove some or all of the entries in the ARP table. As a broadcast frame, an ARP request is received and processed by every device on the local network, which could cause the network to slow down. A threat actor can use ARP spoofing to perform an ARP poisoning attack.

Neighbor Discovery

IPv6 does not use ARP, it uses the ND protocol to resolve MAC addresses. ND provides address resolution, router discovery, and redirection services for IPv6 using ICMPv6. ICMPv6 ND uses five ICMPv6 messages to perform these services: neighbor solicitation, neighbor advertisement, router solicitation, router advertisement, and redirect. Much like ARP for IPv4, IPv6 devices use IPv6 ND to resolve the MAC address of a device to a known IPv6 address.
